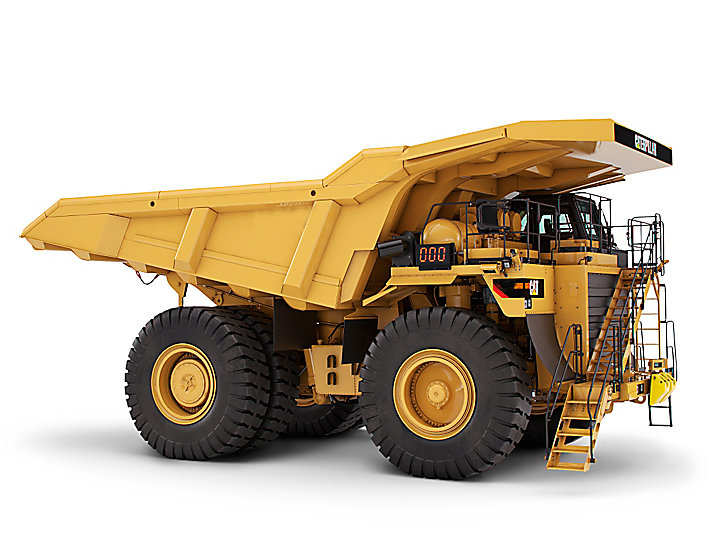

TR50
TR50 off-highway truck is with Top Performance. Developed specifically for mining, quarry and construction applications, the Off-Highway Trucks keep material moving at high volume to lower cost-per ton. Reliable, Durable, Dependable. Rugged construction and easy maintenance procedures ensure long life with low operating costs.
|
Model |
TR50 |
|
N.V.W. |
35000kg |
|
Payload |
45000kg |
|
G.V.W. |
80000kg |
|
Overall dimensions (L*W*H) |
8875*3965*4345mm |
|
Wheel bass |
3960mm |
|
Track |
Front: 3325mm Rear 2730mm |
|
Max Speed |
65km/h |
|
Engine Model |
Cummins QSX15- C |
|
Engine Type |
6-cylinder, in-line, 4 Cycle, Turbocharged/ After cooler |
|
Engine Rated power |
392kW (525hp) |
|
Bore x stroke |
137 x 169mm |
|
Displacement |
15 litres |
|
Maximum rear axle oscillation |
6.5° |
|
Front Linings: Diameter x width |
660 x 127mm |
|
Lining area: front axle |
3980cm2 |
|
Rear Linings: Diameter x width |
660 x 254mm |
|
Lining area: front axle |
7960cm2 |
|
Total Lining Area |
11940cm2 |
|
Air compressor capacity |
8.8L/s |
|
Maximum Tyre Steering Angle |
39° |
|
System Pressure |
190bar |
|
Floor thickness |
15mm |
|
Side thickness |
10mm |
|
Front thickness, lower |
10mm |
|
Stuck volume |
21.5m3 |
|
Heaped volume |
27.5m3 |
|
Chassis, with hoists |
25180kg |
|
Body, standard |
8800kg |
|
Net Weight |
33980kg |
|
PAYLOAD, maximum |
45000kg |
|
Maximum Gross Weight |
80000kg |
|
Cooling System |
125L |
|
Fuel Tank |
470L |
|
Steering Hydraulic System (total) |
38L |
|
Steering Hydraulic Tank |
30L |
|
Body Hydraulic System |
121L |
|
Body Hydraulic and Tank |
83L |
|
Power Take Off |
4L |
