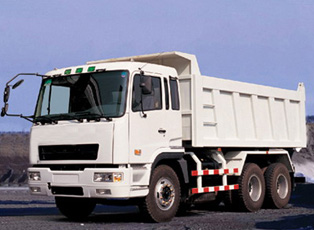

HN3250P34C6M
TECHNICAL SPECIFICATIONS
|
Product model |
HN3250P34C6M |
|
G.V.W |
25 ton |
|
Drive model |
6×4 |
|
Payload |
16ton |
|
Engine model |
CUMMINS L375 20 |
|
Engine Max. Power (kw/r/min) |
273/2200 |
|
Engine Emission Standard |
Euro II |
|
Transmission brand |
FAST GEAR |
|
Transmission model |
9JS150T |
|
Rear Axle(drive axle)-load |
13 ton x 2 |
|
Front Axle-load |
7.5 ton |
|
Steering System |
HITACHI |
|
Wheelbase |
3600+1350mm |
|
Tire type |
Radial Tubeless |
|
Tire model |
12R22.5 |
|
Tire number |
10+1 |
|
Oil Tank Volume |
320L |
|
Overall Dimensions(L×W×H) |
8080x2495x3200mm |
|
Body steel thickness |
Bottom 8mm/ Side 5mm |
|
Body lifting system |
Hydraulic central lift |
|
Front overhang / Rear overhang |
1370/1560mm |
|
Max. Speed () |
90km/h |
