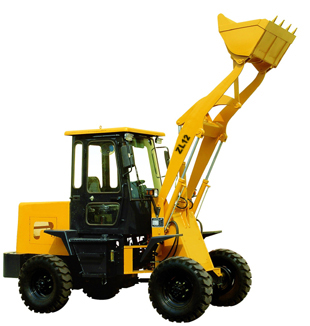

ZL12
Main features:
--Originally from Komatsu technology, high reliability and productivity
--Chinese engine, powerful and reliable
--Torque converter and counter-shaft transmission gearbox are separated independently, higher reliability and easier maintenance
--Driving Axle in Meritor technology
--Fully hydraulic steering system, power shift transmission, easy to operate
--Comfortable operation environment, spacious cabin, Grammer seat,
--Various attachment are available, such as Log clamp, pipe clamp, rock bucket, loose bucket etc. to meet different needs
|
Main Technical Data |
|
|
Bucket Capacity (m3) |
0.45 |
|
Rated Load ( t ) |
1.2 |
|
Max. Dump Height (mm) |
2850 |
|
Dump Distance (mm) |
790 |
|
Max. Break Force (KN) |
36 |
|
L*W*H (mm) |
4900*1600*2550 |
|
Operating Weight (t) |
2.5 |
|
Total Cycling Time (s) |
13 |
|
Wheel Base (mm) |
2100 |
|
Tread (mm) |
1440 |
|
Min. Turn Radius (mm) |
3400 |
|
Engine |
|
|
Model |
CHANGCHAI QC2105 |
|
Rated Power (kw) /Speed (rpm) |
24/ 2200 |
|
Fuel |
0 or -10 light diesel |
|
Tire Size |
8.25-16 |
|
Note: Materials and specifications are subject to change without notice. |
|
