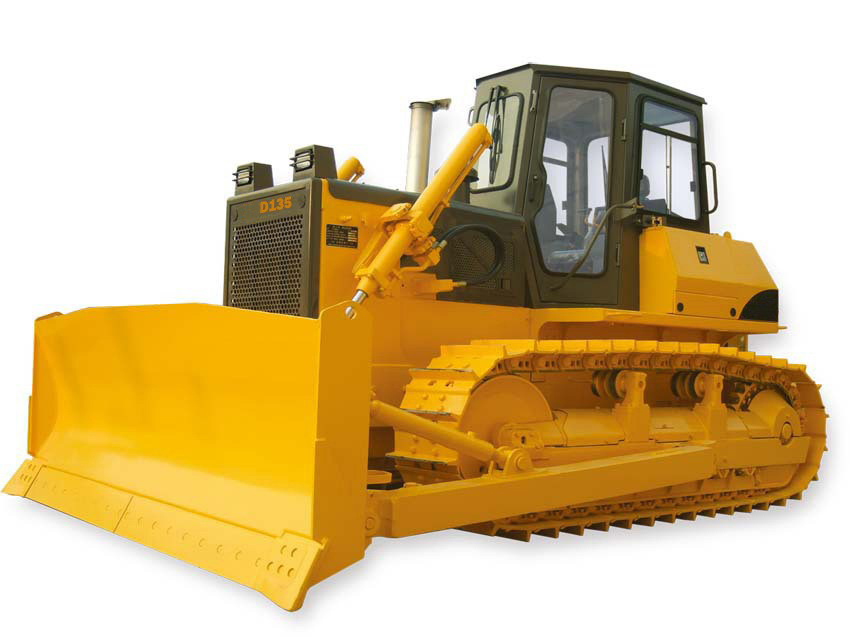

D135

To meet the market demand, D135 bulldozer is developed by absorbing advanced techology from abroad. It boasts reasonable overall arrangement, beautiful design, flexible and comfortable driving, superior performance, convenient maintenance, safety and reliability.

Technological Advantages of D135 Bulldozer
1, Power system makes use of Shanghai diesel engine D6114ZG4B, with low oil consumption
2, With modular connection between gear box and the torque converter with motor housing, it is convenient to assemble.
4, The rear floorboard and support adopt one-piece welding, which is firm and beautiful.
5, The cab is equipped with high grade seat, which is comfortable for the driver to operate the bulldozer.
6, With beautiful and novel design, the hexaheradral cab has a broad vision.
Bulldozer







ENGINE

Model

D6114ZG4B

Type

vertical four-stroke cycle water cooled with turbo

Flywheel power (kW)

99.2

Rated speed (r/min)

1900

Number of cylinders-bore×stroke (mm)

6-114×135

Starting method

Starting motor 24V 7.5kW

Battery

24V (12V×2)

Air cleaner

KLH 14u Dry type, precleaned paper element air cleaner

Min fuel consumption ratio (min)

170

TRANSMISSION SYSTEM

Torque converter

3 element, single stage, single phase

Transmission

Planeary gear, multiple-disc clutch, 3 forward and 3 reverse speeds

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple disc, spring loaded, hydraulic helping opertion, mechanical separating, linking steering brake

Steering brake

Wet, band brake, operated with hydraulic booster

Final drive

Spur gear, double reduction, splash lubrication

UNDER CARRIAGE

Sprocket

Segmented

Number of track shoes (each side)

6 (4 single, 2 double)

Track tension

Hydraulic adjusted

Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers

TRAVEL SPEED (km/h)

　

1st/     2nd/    3rd/

Forward

3.2/     5.9/     9.8/

Reverse

3.9/     7.1/    11.9/

TRACK

Type

Single teeth, dry type

Track pitch (mm)

190

Track width (mm)

460

Number of track shoes (each side)

28

Length of track on ground (mm)

2365

Ground clearance (mm)

320

Track gauge (mm)

1880

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

14

Rated delivery (L/min) (1700r/min)

228

Pump

Gear pump

Control valve

Hydraulic-operated, plunger type

Valve position

Raise, Hold, Lower, Float

Cylinder,Boro×Rod×Stroke (mm)

Φ90×Φ55×1050

WORK EQUIPMENT

Blade type

Straight tilt blade

Width×Height (mm)

3286x1320

Max.lift above ground (mm)

930

Max.drop below ground (mm)

590

Pitch adjustment (°)

55

Max.tilt (mm)

400

Blade capacity (m3)

3.7

Weight (kg)

14000
